Compression Moulding Machines
Ideal for improving press productivity, higher quality &
minimum rejected parts
CEV & CE Series 15 to
150 ton Compression Presses
CEV & CE series are state-of the-art, Down Stroke and Up Stroke,
hydraulic compression moulding machines respectively. They are based on
advance U.S designs; offering customers accurate, sturdy, deflection free
machines at economical Indian prices. Besides, moulding rubber, plastic,
composites they can be used for wide variety of functions as bonding,
laminating, assembling etc.
These presses provide uniform and constant curing pressure; an essential
requisite for accurate moulding through the modern energy efficient
hydraulic system. The design of these machines allows you one to mould with
the two mould halves fixed on the heated platens. The machine opening
facilitates the mould opening thus eliminating the need to take out the
mould out of the press each time. This also eliminates the heat loss problem
when moulds are brought out in each cycle.
JRD presses like vacuum moulding machines and hydraulic compression
moulding machines are fitted with user friendly, reliable PLC based controls
enabling perfect repeatability of all the machine parameters. The presses
have features of automatic degassing (0-99 times); pressing & degassing
times that can be independently set and adjustable and the distance of mould
opening for degassing that can be freely set.

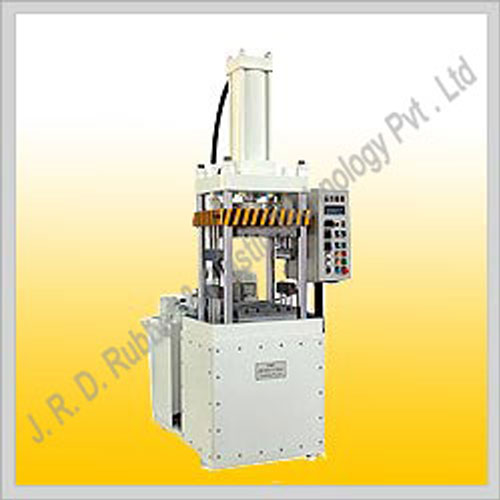

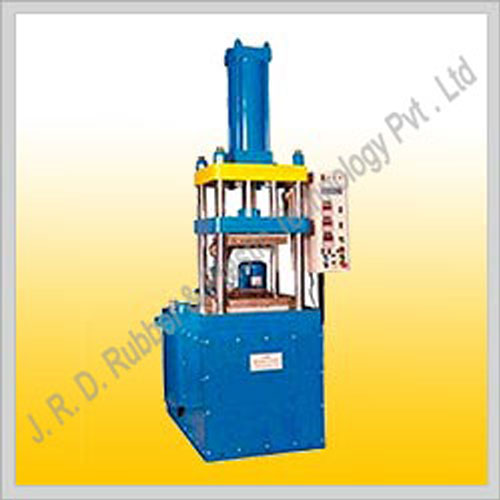

60 ton, Down Stroke compression moulding machine for precision molding
with minimum flash condition.. Provides versatility and performance with

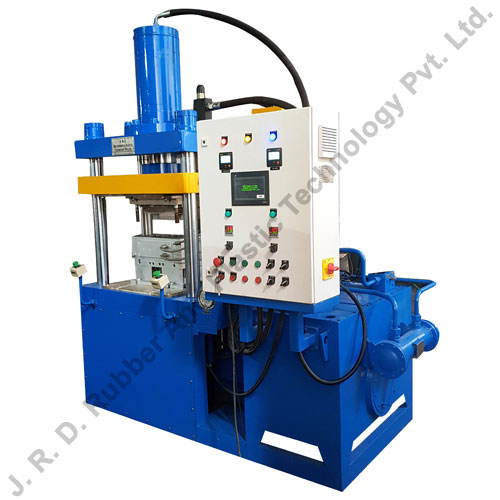

60 ton, Down Stroke, Compression moulding machine with useful feature
of Top & Bottom Hydraulic Corelifters which enables automatic
operation of 3 or 4 plate compression moulds. The top corelifter enables
moulder to use the same press for compression/transfer moulding.

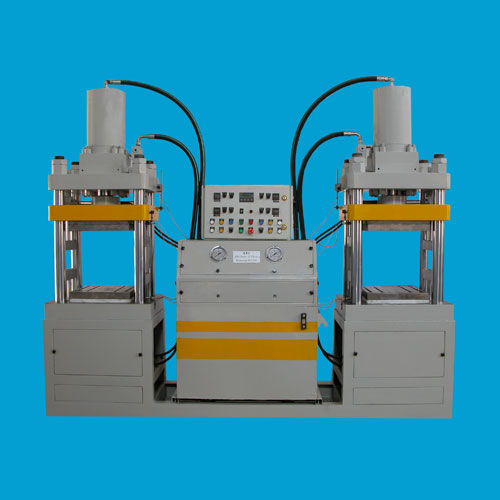

100 ton, Down Stroke, Double Station, Compression moulding machine. It
is has the useful feature of top & bottom hydraulic corelifters on
each station which enables automatic operation of 3 or 4 plate
compression mould. The top corelifters allows moulders to use the twin
station press for compression/transfer moulding. The common hydraulic
system in the middle, operates both the stations. The user friendly &
reliable controls based on PLC & MMI. provide sequential operation
control of both stations These Twin Station Presses provide versatility
and performance with economy.

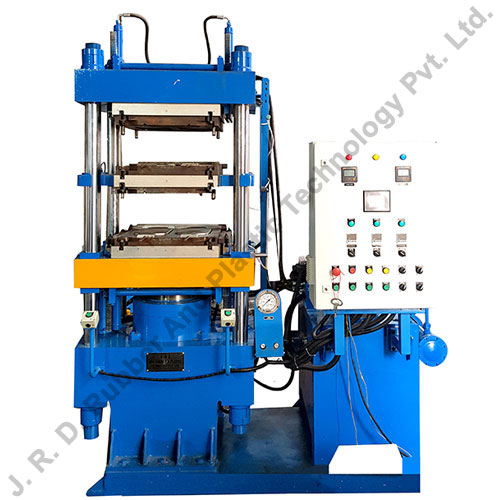

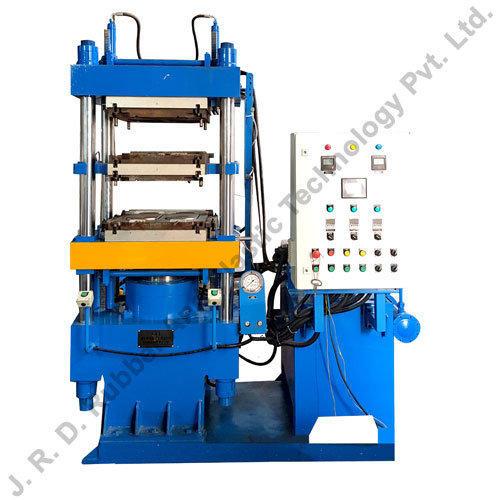

100 ton, Up Stroke, Double Station, Double Daylight, Compression
moulding machine.. The common hydraulic system in the middle, operates
the twin stations with two daylights. The user friendly & reliable
controls based on PLC & MMI. provide sequential operation control of
Standard Features on CEV & CE
JRD CE series, up stroke presses are also offered
with double daylight in both single & twin station configurations.
- Clamp Force: 15 to 150 ton
- Platen Size: 12" x 12" to 30" x 30"
- Programmable Logic Controller(PLC)
- Automatic transfer from closing to pressing speed
- High & Low Pressure adjustment valves
- Integral Hydraulic System based on manifold which reduces the piping &
- The hydraulic components are easily accessible for quick maintenance.
- Top & Bottom Hydraulic Corelifters
- Touch Screen or MMI based controls.
- Digital PID temperature controllers.
- Safety Guards and access doors.
- Water Cooled Heat Exchangers
- Water Cooled Platens
- Thermic Fluid heated Platens
- Digital display & electronic control of clamp force, speed & heat.
Vacuum Chamber Compression
Enhances substantially the moulding
quality & increases production upto 50%
VACE Series 30 to 150 ton
Vacuum Compression Presses
VACE series are state-of the-art, up stroke, hydraulic vacuum chamber
compression moulding machines. They are used for moulding rubber, silicone &
Our Vacuum Chamber Presses find special use in applications such as O
rings, oil seals, washers, gaskets and medical parts where air trapping in
moulded parts and insufficiently filled cavities are commonly faced
problems. Besides eliminating these problems JRD vacuum presses also reduce
the vulcanization time by up to50% due to improved heat transfer from tool
These Presses are also available with die sliding/ejector arrangement and
tilting of upper platen for easier access.
150 ton, upstroke vacuum compression moulding machine (20'' x 20''
platen) with mould sliding out arrangement and corelifters.
